Google Maps with markers

Pinning locations using Google Maps visually ties your geo-data to specific addresses.

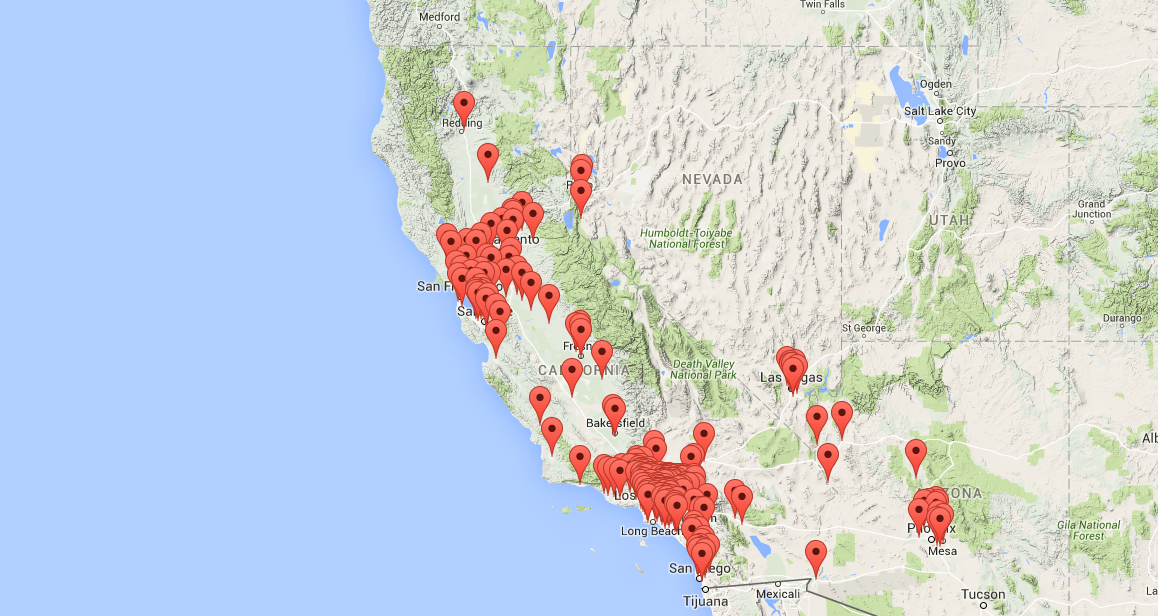

The example below shows a Google map with markers indicating In-N-Out locations.

*Learn more about using HTML to customize your reports.

Create a Google Map with markers

Add the stylesheet link and script tag to the top of the HTML:

<link rel="stylesheet" href="https://mode.github.io/alamode/alamode.min.css">
<script src="https://mode.github.io/alamode/alamode.min.js"></script>

Add the customizable snippet at the bottom of the HTML:

<script>

alamode.googleMap(
  {
  	  google_maps_api_key: "YOUR_API_KEY",
	  title: "In-n-Out locations",
	  lat_column: "lat",
	  lng_column: "long",
	  label_column: "city",
	  query_name: "Query 1",
	  center_lat: 36.75,
	  center_lng: -119.77,
	  starting_zoom: 6,
	  map_type: "terrain",
	  height: 600
  }
)

</script>

You can customize the map by editing the parameters in the snippet:

• html_element: If not provided, the map will be added as the last element in the report. To place it elsewhere, select an element in your report with this parameter.
• google_maps_api_key: A required Google Maps Javascipt API key. You can create a free key by clicking on the Get a Key button on this page.
• title: The map's title.
• lat_column: The dataset column that returns latitude vaules.
• lng_column: The dataset column that returns longitude vaules.
• label_column: The dataset column that returns the label values for each map marker.
• query_name: The name of the query that returns the map's dataset. If you update the name of the query, you’ll need to update it here as well.
• center_lat: The default center latitude value for the map.
• center_lng: The default center longitude value for the map.
• starting_zoom: The default zoom. Typically ranges from 1 to 18. The higher the value, the greater the zoom.
• map_type: The default map type. You can find more about available types here.
• height: Height of the chart in pixels.
